Demo: OpenShift Virtualization

Start here. A customer-facing demo showing a RHEL 9 virtual machine provisioned by Terraform onto OpenShift Virtualization, registered, configured, patched and published — one button, about nine minutes, and torn down on a schedule that night.
Length 30 minutes (25 + 5 for questions)
Audience Linux and platform sysadmins who want to run their estate with AAP
Reader The Ansible pre-sales engineer presenting it
Needs a live environment? No — every artifact is committed
Status Ready to present

The four documents

File Read it when
run-sheet.md While presenting. Minute markers, what is on screen, exact commands, recovery moves
talk-track.md While rehearsing. The narrative and the actual words, beat by beat, with the rendered assets embedded
architecture.md When asked "how does that work". The workflow graph, the object inventory, the timing table
objections.md Before you go in. What this audience asks, answered from the code — including the honest "no" answers

Present from the run sheet. Rehearse from the talk track. The other two are reference.

The 60-second version

A requester answers two questions — an operating system and a t-shirt size — and a workflow in Ansible Automation Platform does the rest:

  1. Provision — Terraform builds the VM on OpenShift Virtualization and registers it as a managed host in AAP. The public URL exists immediately and correctly returns 503, because there is no web server yet.
  2. Register — waits for ssh, then attaches the guest to the Red Hat CDN. This has to happen before anything else: the boot image ships with no package repositories at all.
  3. Configure — web server, firewall, Cockpit, the demo page, security patches. The URL turns 200.
  4. Check — logs in, gathers facts, caches them in AAP, so the workflow ends by proving the machine is genuinely reachable rather than that the tasks ran.

That night, a scheduled teardown destroys the VM and deregisters it — while deliberately preserving the expensive things.

What the demo is actually about is not speed. It is that provisioning, configuration, patching and decommissioning are one artifact, in version control, in public, that converges instead of merely running.

Why it works without a cluster

Every image the talk track needs is committed, from two different sources.

Rendered, not photographed. Both guest-facing artifacts are Jinja templates, so they render on a laptop with nothing running. utilities/render-demo-assets.py renders the demo page and screenshots it with headless Chrome, and prints the two login banners and facts.json as text.

It lives in sales.demos, not here — it reads its templates from the linux_configure role — so run it from a checkout of that repo, cloned beside this one:

cd ../sales.demos
python3 utilities/render-demo-assets.py          # writes into this repo via --out
python3 utilities/render-demo-assets.py --no-png # banners only, no Chrome

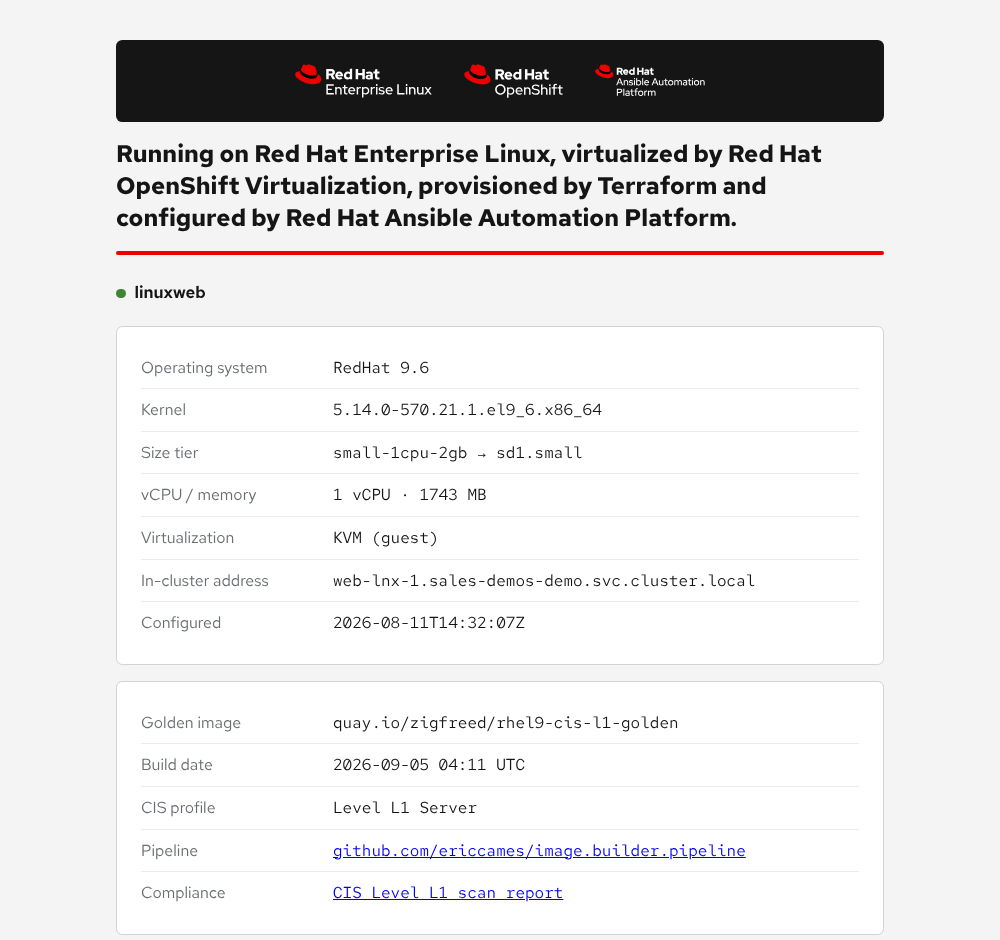

That writes demo-page.png:

The demo page, rendered from the template by headless Chrome

It is accurate — the guest serves that exact template — but it is not a capture of a live run. Say so if anyone asks, and prefer demo-page-live.png (first row of the table below) when you are presenting: it is the same page, genuinely served, and a real capture is worth more in the cold open. The rendered one is what keeps this working when there is no cluster, and what the render script regenerates when the template changes.

The same run prints /etc/motd, which is what somebody sees after they authenticate to the guest:

        ___________________________________________________________________
       /                                                                   \
      |    ____  _____ ____    _   _    _  _____                            |
      |   |  _ \| ____|  _ \  | | | |  / \|_   _|                           |
      |   | |_) |  _| | | | | | |_| | / _ \ | |                             |
      |   |  _ <| |___| |_| | |  _  |/ ___ \| |                             |
      |   |_| \_\_____|____/  |_| |_/_/   \_\_|                             |
      |                                                                     |
      |   ___   ____   _____  _   _  ____   _   _  ___  _____  _____        |
      |  / _ \ |  _ \ | ____|| \ | |/ ___| | | | ||_ _||  ___||_   _|       |
      | | | | || |_) ||  _|  |  \| |\___ \ | |_| | | | | |_     | |         |
      | | |_| ||  __/ | |___ | |\  | ___) ||  _  | | | |  _|    | |         |
      |  \___/ |_|    |_____||_| \_||____/ |_| |_||___||_|      |_|         |
      |                                                                     |
      |         =============================================               |
      |          V I R T U A L I Z A T I O N   D E M O                      |
      |         =============================================               |
      |                                                                     |
      |   Powered by:                                                       |
      |     - OpenShift Virtualization    (host)                            |
      |     - Terraform                   (provision)                       |
      |     - Ansible Automation Platform (configure/patch)                 |
      |     - Red Hat Insights            (detect)                          |
      |                                                                     |
      |   This host is managed by AAP. Manual changes may be reverted.      |
       \___________________________________________________________________/
              \
               \   ^__^
                \  (oo)\_______
                   (__)\       )\/\
                       ||----w |
                       ||     ||

   Demo page:  https://web-lnx-1-web-sales-demos-demo.apps.cluster-abcde.dyn.redhatworkshops.io
   Console:    https://web-lnx-1-cockpit-sales-demos-demo.apps.cluster-abcde.dyn.redhatworkshops.io
   Compliance: https://web-lnx-1-web-sales-demos-demo.apps.cluster-abcde.dyn.redhatworkshops.io/compliance/report.html

Let the cow get its laugh, then land the line under it: "This host is managed by AAP. Manual changes may be reverted." — the whole operating model, printed where the person about to do something manual will read it.

The pre-authentication banner, /etc/issue.net, is deliberately not here. It is the contrast half of a beat that only works when both are shown in order, and that beat — with the words — is in the talk track.

Captured from a live run, because the AAP and OpenShift interfaces cannot be rendered:

Click any thumbnail for the full-size image.

Image Shows

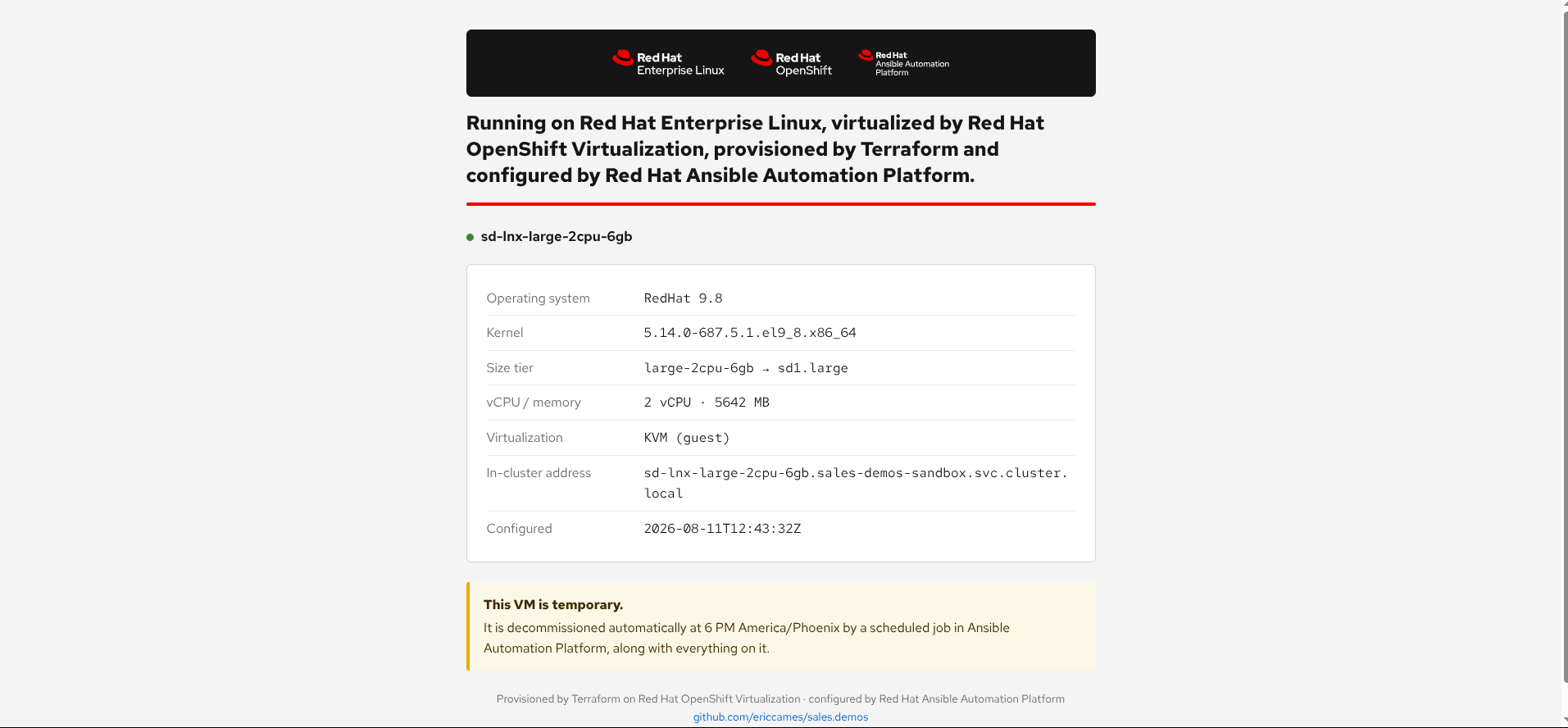

demo-page-live.png The demo page served by a real guest — use this for the cold open The demo page served by a real guest

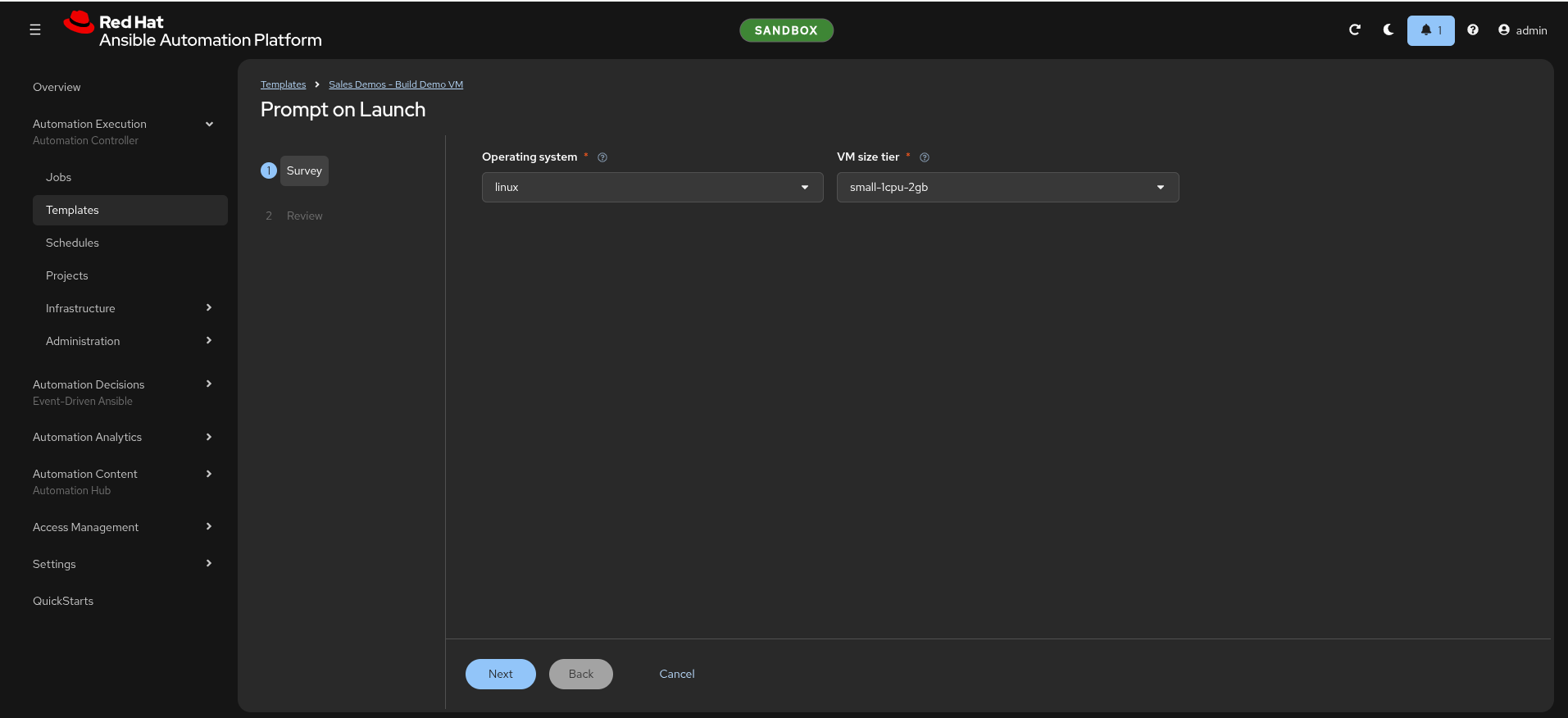

aap-survey.png The launch survey a requester sees The launch survey

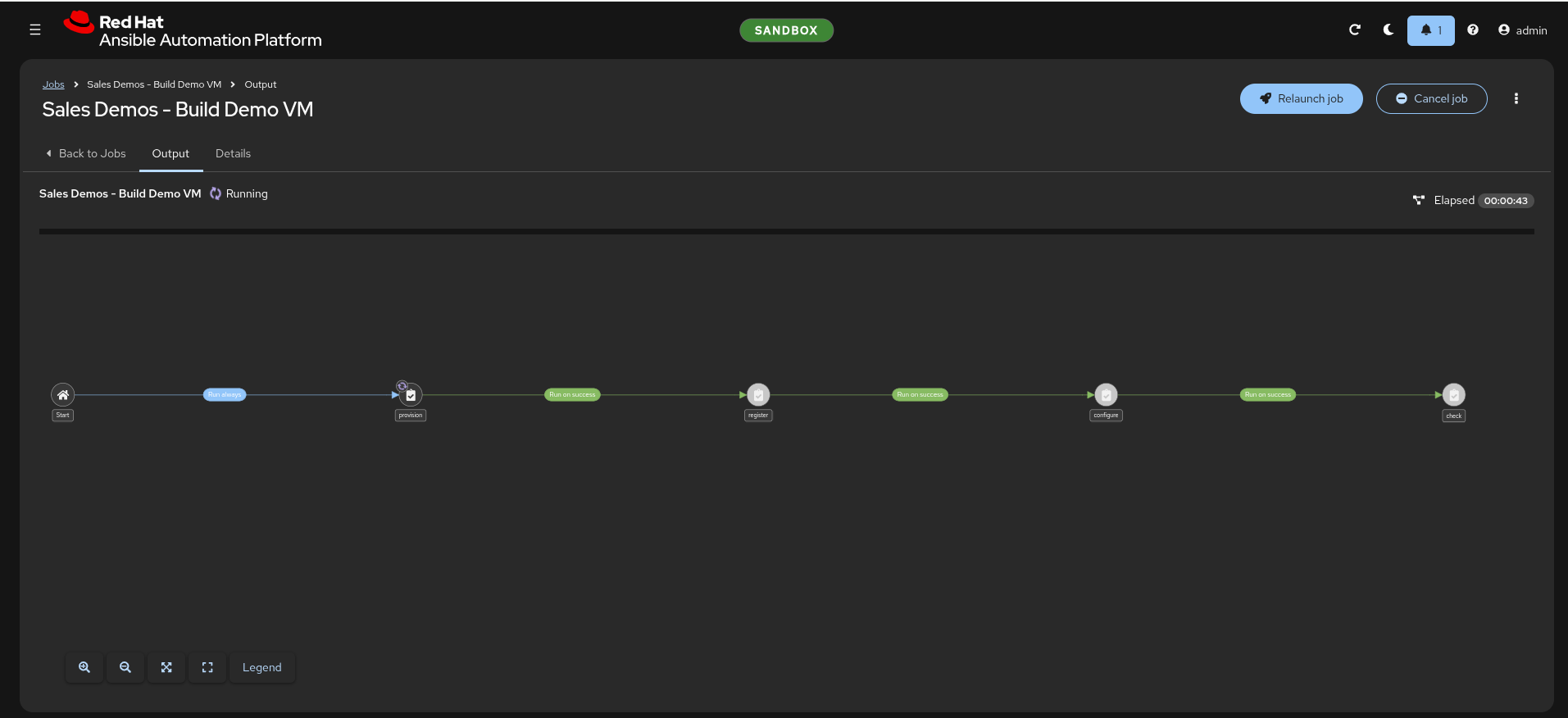

aap-workflow-running.png The four chained nodes, mid-run The workflow visualizer, provision in progress

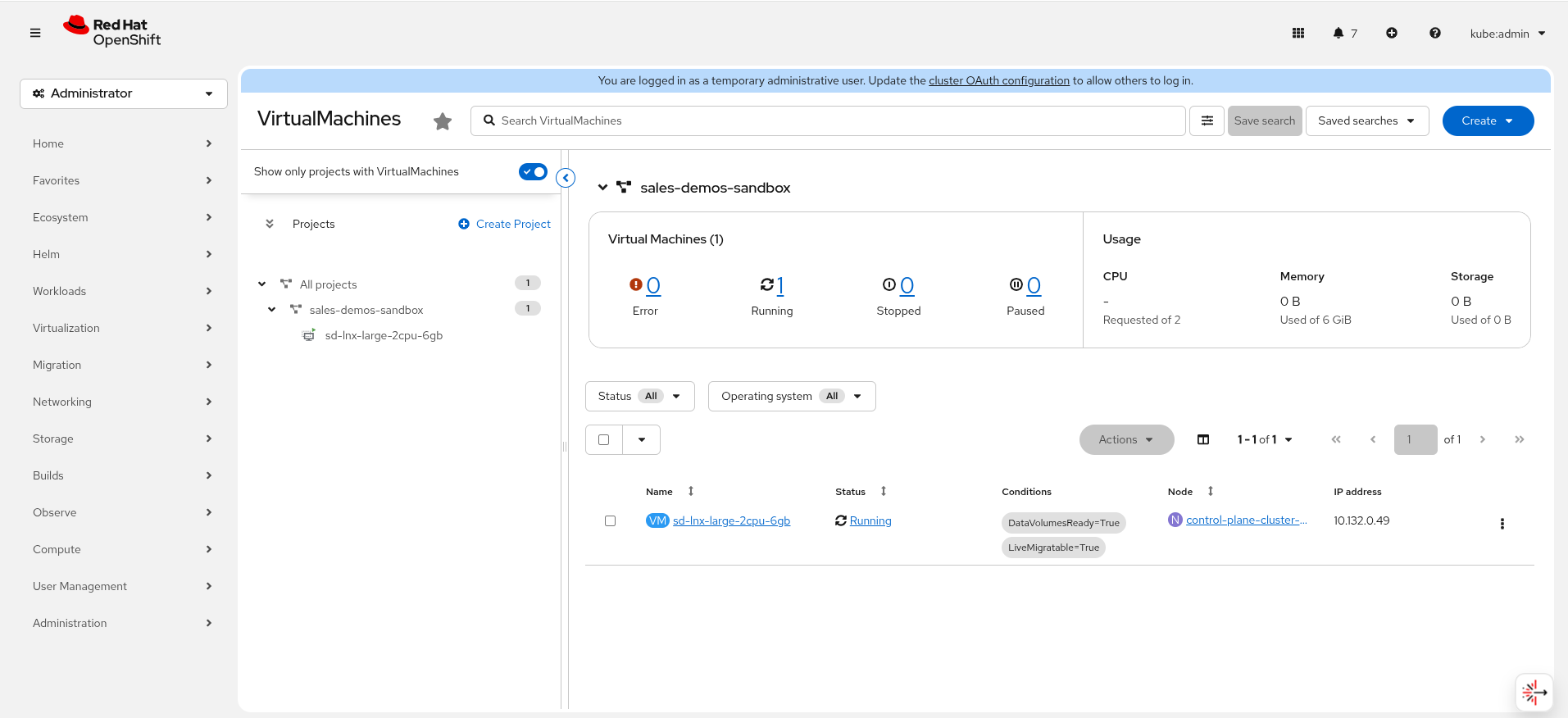

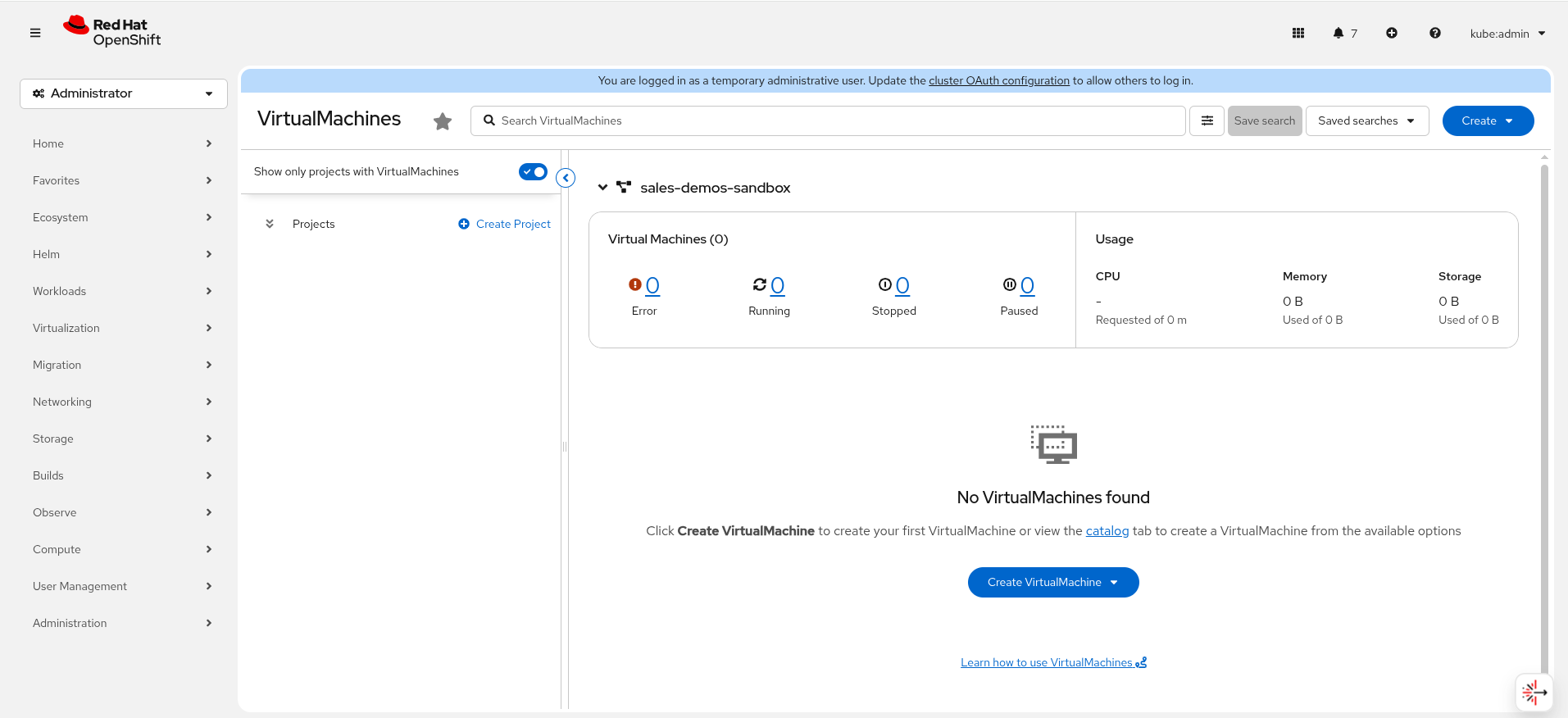

ocp-vms-before.png / ocp-vms-after.png The namespace empty, then with one VM Running The demo namespace before the run
The demo namespace after the run

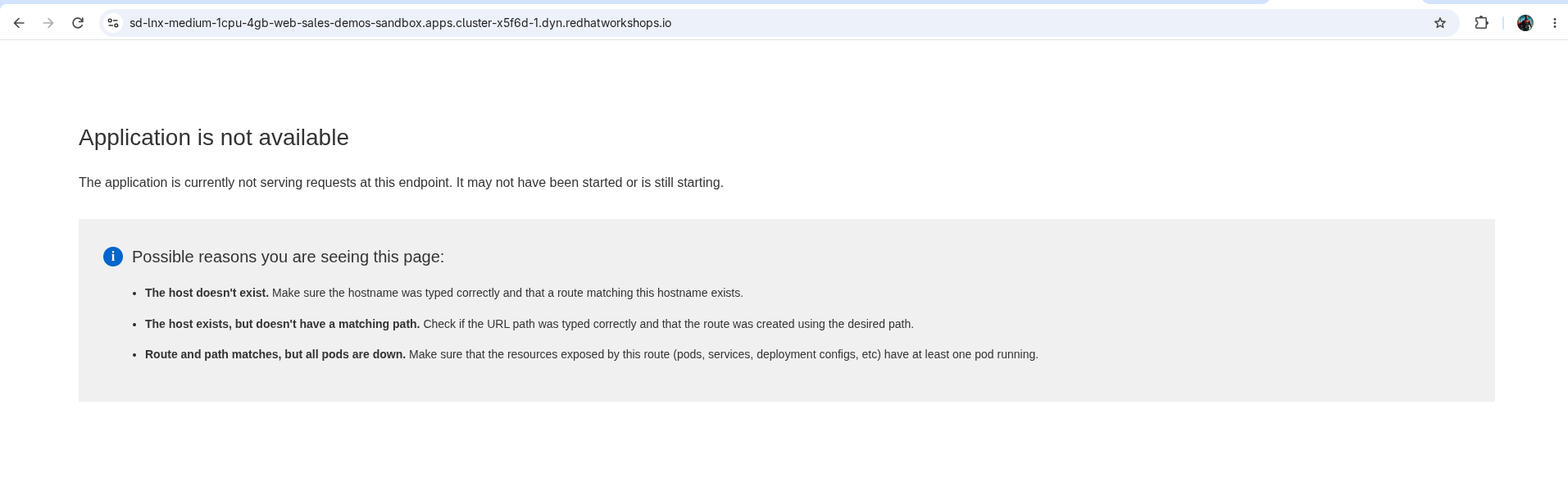

route-503.png The URL live and correctly serving nothing yet The Route before the web server exists

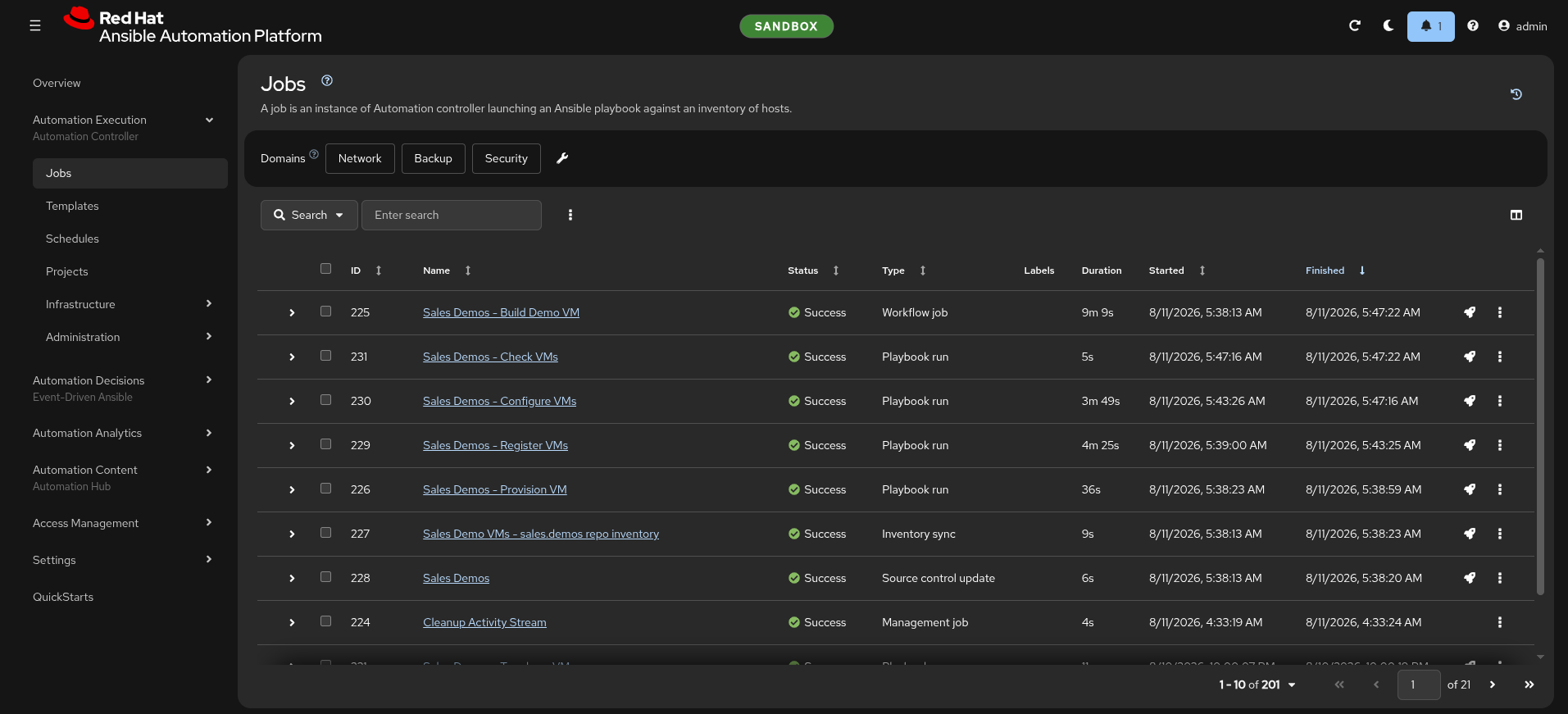

aap-job-timings.png Every node's measured duration, all Success The controller's job list for a complete run

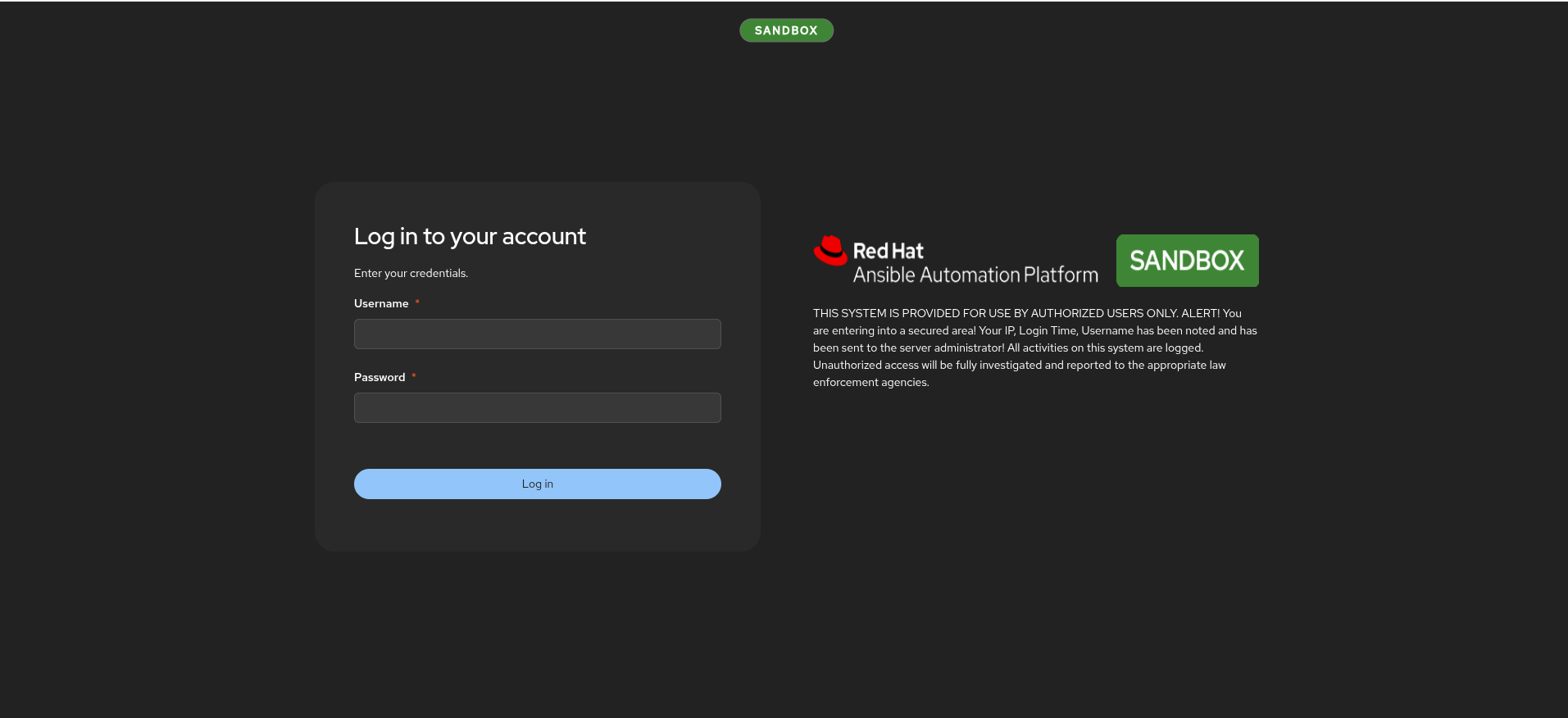

aap-login-badged.png The environment badge on the sign-in page The badged sign-in page

These come from several different launches, at different size tiers — small in the survey, medium in the 503, large in the namespace shot. They illustrate the mechanism; they are not one continuous sequence, and the talk track does not claim they are. If you want a matched set, capture one in a single run and replace them.

The run sheet ends with the shots still worth capturing — the most valuable being the 200 half of route-503.png in the same browser frame.

If you want to run it live

Two things, in order:

/sales-demos-verify-env   # proves the environment is warm — builds and times a real VM
/sales-demos-provision    # or launch "Linux Day 1 - 0 Workflow" in AAP

Then read Running it live in the run sheet — it changes three beats and nothing else, and it tells you when to cut back to the screenshot rather than debug with an audience.

New to this repo? Run /sales-demos-first-time first.
