ClickOps walkthrough — Private Automation Hub

Reference for the manual half of the demo. Every screen, every field, every value. Keep it open in a second tab while presenting; the condensed live version is beat 2 of run-sheet.md.

This is a real, working procedure, not a strawman. If you never adopted the config-as-code half, this is genuinely how you would configure a Private Automation Hub, and it is what most people are doing today. The demo's argument is not that this is wrong — it is that nothing here writes down what you did.

A sixth document, on purpose. The five-file template has no slot for this, and the run sheet has to stay scannable by someone standing up mid-sentence.

Getting there

Private Automation Hub is not a separate URL. AAP 2.6's gateway fronts it by path on the same hostname:

https://<aap_hostname>/hub/

Log in with the same account as AAP itself. Left nav: Automation Content.

Left nav item	What it is
Collections	What is actually in your hub
Repositories	The four containers — `published`, `rh-certified`, `validated`, `community`
Remotes	Where each repository fetches from. This is the one you edit
Remote registries / Execution environments	The container-image side

All three remotes already exist on a fresh install. You are editing stock objects, never creating them — worth saying out loud, because people expect to have to build this.

Step 1 — Show it empty

Automation Content → Repositories. rh-certified, validated, community all show Never synced.

Repositories — never synced

"This ships with your subscription. This is what it looks like on nearly every install I see."

Step 2 — Edit the community remote

Automation Content → Remotes → row community → ⋮ → Edit.

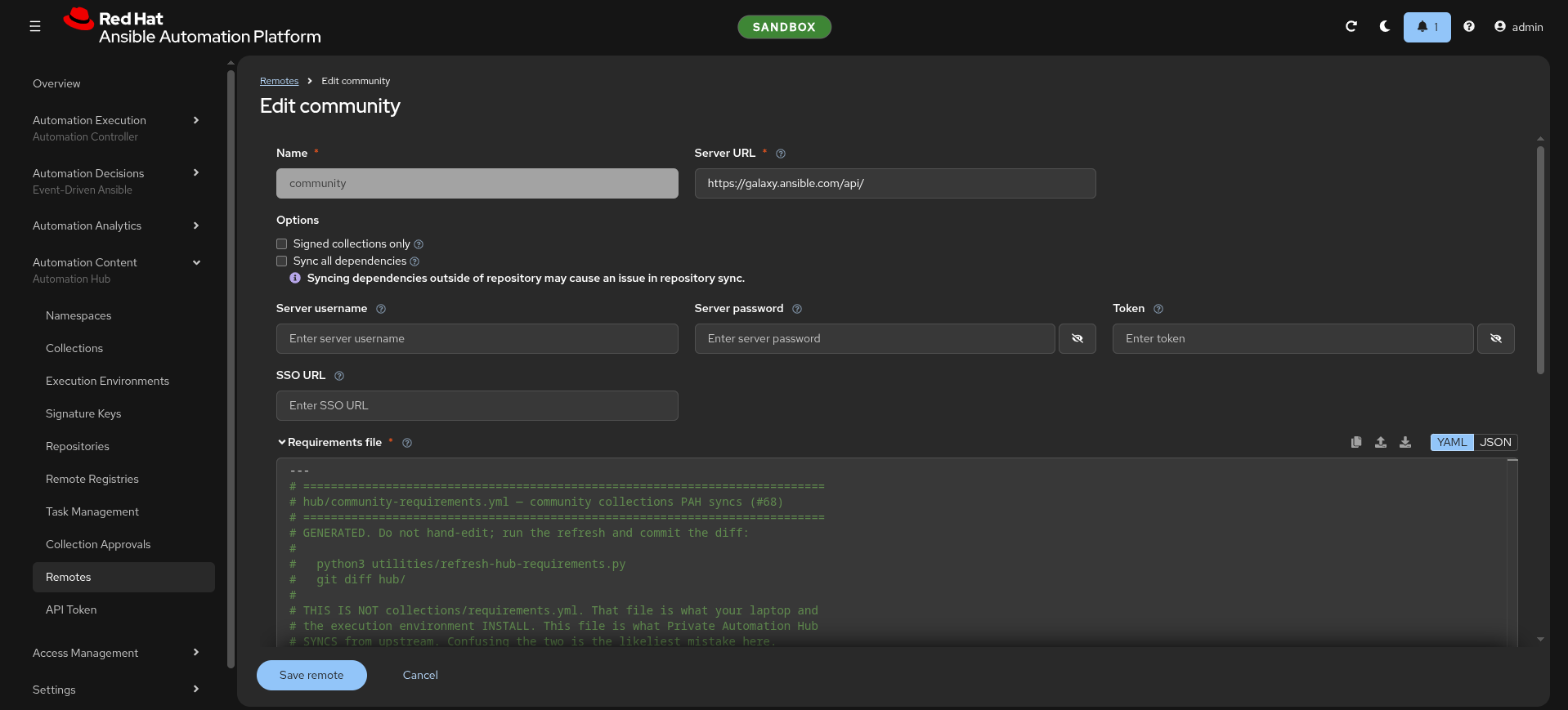

Edit community remote

Do community rather than rh-certified for the live portion: it needs no credential, so nothing has to be hidden from the projector and no token can expire mid-demo.

Field	Value	Say this
Name	`community`	Fixed. Stock object
URL	`https://galaxy.ansible.com/api/`	Already correct
Proxy URL / username / password	leave blank	"Most enterprises need this. Three more fields, per hub"
TLS validation	leave checked
Client certificate / key	leave blank	mTLS to an internal mirror lives here
Requirements file	paste the block below	The field that matters
Download concurrency	`10`
Rate limit	`8`	"Remember this number" — beat 4 changes it
Signed only	leave unchecked	Signing is not configured here

The requirements file to paste

---
collections:
  - name: ericcames.aap_as_code
    version: "1.0.2"
  - name: ericcames.aap_as_code_start_kit
    version: "1.0.0"
  - name: ericcames.demo_datacenter
    version: "1.0.0"
  - name: ericcames.f5_daily_demo
    version: "1.0.0"
  - name: ericcames.f5dailydemo
    version: "0.0.5"
  - name: ericcames.hashicorp_daily_demo
    version: "1.0.1"
  - name: ericcames.linux_daily_demo
    version: "0.0.1"
  - name: ericcames.panos_daily_demo
    version: "1.0.0"
  - name: ericcames.satellite_dailydemo
    version: "0.0.0"
  - name: ericcames.windows_daily_demo
    version: "1.0.0"
  - name: mlowcher61.appviewx_certplus
    version: "1.0.0"
  - name: mlowcher61.ivanti_itsm
    version: "0.2.2"
  - name: mlowcher61.metricstream_grc
    version: "0.1.0"
  - name: mlowcher61.netskope
    version: "0.3.1"
  - name: mlowcher61.rapid7_vulnerability
    version: "0.1.1"

Pause on the versions. Someone always asks why they are pinned:

"Because there is no 'newest three' setting. Ask for a collection by name and you get every version ever published — some of these have forty. The only way to bound it is to say which ones."

Click Save.

Step 3 — Sync it

Repositories → community → ⋮ → Sync.

A task starts. Under a minute for these fifteen. All three repositories together measured 4.4 minutes, and certified is the bulk of it — still too long to watch in a thirty-minute slot, which is why you sync before rather than during.

Collections now shows fifteen entries, one version each.

Repositories — populated

Step 4 — The count

Out loud, while it syncs:

1 remote configured
6 fields touched
2 screens
~4 minutes
0 record of any of it

"That is not bad. That is genuinely fine — for one hub, once."

Then the turn:

"Now do that in dev, in test, and at the DR site. Identically. And in six months tell me what the rate limit was set to today."

What the certified remote would need

Do not do this live — it needs a real credential on screen. Describe it.

Edit rh-certified remote

Field	Value
URL	`https://console.redhat.com/api/automation-hub/content/published/`
Auth URL	`https://sso.redhat.com/auth/realms/redhat-external/protocol/openid-connect/token`
Token	the Red Hat offline token from `console.redhat.com/ansible/automation-hub/token`
Requirements file	214 collections with `>=` floors

Validated is identical but with .../content/validated/.

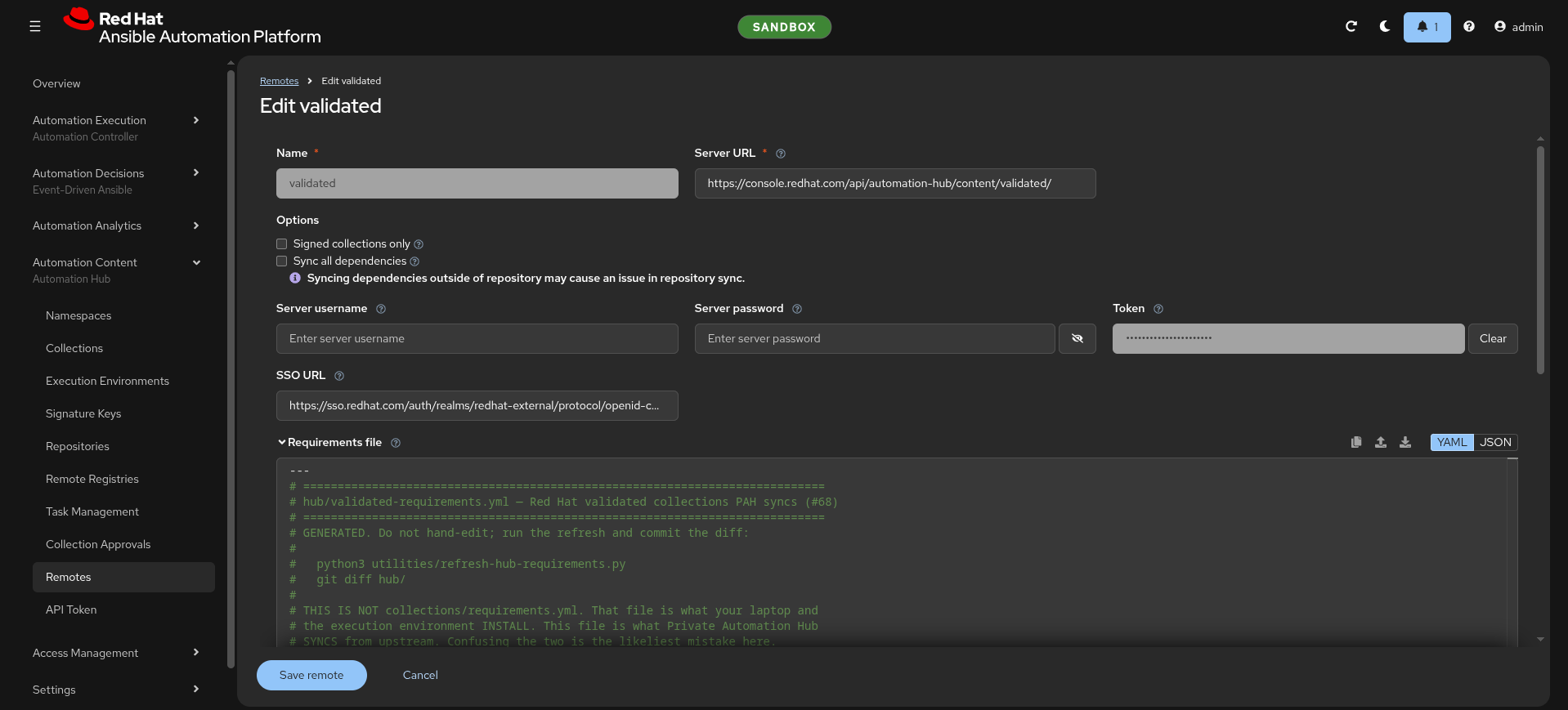

Edit validated remote

Two things worth flagging here, because both bite people:

That token is not your hub's API token. It points outward, to Red Hat. See the three-token table in architecture.md.
Nobody hand-types 214 collections into a textarea. This is the point at which the manual path stops being merely tedious and starts being impossible — which is a better argument than anything about speed.

What has to happen on every other hub

The honest full list, per environment:

Edit three remotes
Paste three requirements files, one of them 214 entries long
Set the offline token on two of them
Trigger three syncs
Remember to redo all of it when the token rotates or a version window moves

Pointing your laptop at the hub

Once the hub is populated, you still have to tell ansible-galaxy to use it. That lives in ~/.ansible.cfg — the home directory, not the project directory. Ansible picks one config file and does not merge, so a project-local ansible.cfg shadows everything in ~/.ansible.cfg, including the Red Hat offline token that syncs certified content. The home-directory file is the one authoritative location.

[galaxy]
server_list = my_pah, galaxy

[galaxy_server.my_pah]
url = https://<aap_hostname>/api/galaxy/content/approved/
token = <your PAH API token>

[galaxy_server.galaxy]
url = https://galaxy.ansible.com/api/

[galaxy_server.rh_certified]
url = https://console.redhat.com/api/automation-hub/content/published/
auth_url = https://sso.redhat.com/auth/realms/redhat-external/protocol/openid-connect/token
token = <your Red Hat offline token>

The order in server_list matters — Ansible tries them left to right. With my_pah first, ansible-galaxy collection install resolves from your hub before falling back to public Galaxy.

Three things worth noting:

Point at approved, not the mirrors. approved holds exactly the versions you declared, and it is the only repository where removal works. rh-certified carries every version inside the window; community never removes anything.
The token here is Token 2 — your hub's API token, from Collections → API token in the PAH UI. It is not the Red Hat offline token (rh_certified), which points outward to sync content into the hub. See the three-token table in architecture.md.
The rh_certified section is already there if you have ever installed a certified collection from console.redhat.com. That section stays — it is what sync_hub.yml reads when populating the hub. The new section above it is what makes your day-to-day installs resolve from your hub instead.

Restoring the demo afterwards

The UI edits above are overwritten the next time the config-as-code runs, which is the demo. But to reset deliberately:

ansible-playbook playbooks/sync_hub.yml -i inventory --limit sandbox \
  -e target_env=sandbox -e hub_sync_enabled_override=false \
  --vault-id sales.demos@~/secrets/.vault_pass_sales_demos

hub_sync_enabled_override=false re-applies the remote and repository configuration without starting a sync — seconds rather than minutes.
